Elmotor - 500 SWIFT 12V engine - GPX
159 kr
Slut i lager – Mejla mig

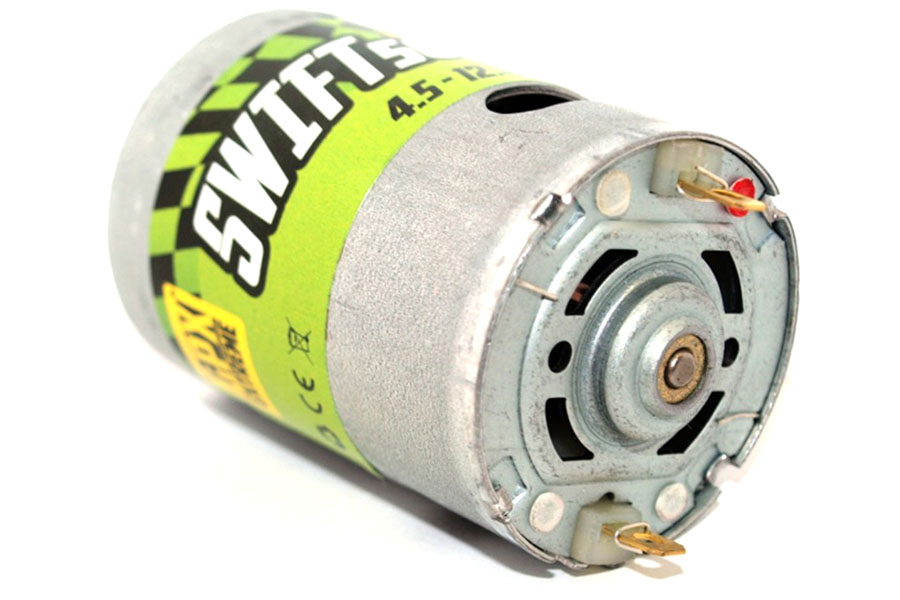

Elmotor SWIFT 500 12V.
Ventilerad motor som drar väldigt lite ström. Motorn drivs med 4,5 - 12V.
Perfekt för modeller som förbrukar lite ström såsom båtar mm.
Technical specification
- Nominal voltage: 12V
- Work range: 4.5 - 12.0V

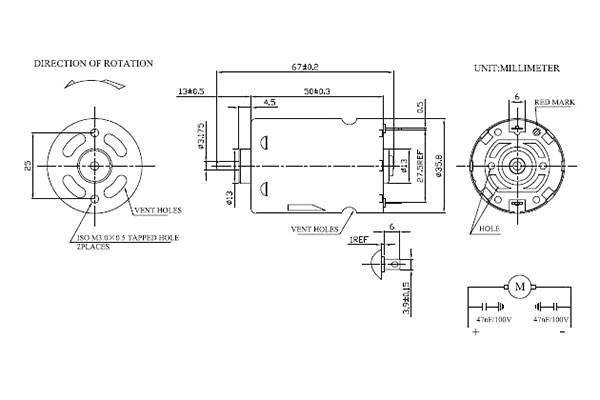

- Shaft's diameter: 3,17mm
- Shaft's length: 8,5mm
- Body's diameter: 35,8mm
- Body's length: 50,0mm
- Complete length: 67,0mm
- Weight: 158g
Characteristics for 6V voltage:
- Revolutions without load: 5.800 rpm
- Power consumption without load: 0,4A
- Revolutions with max load: 4.800 rpm
- Power consumption at max efficiency: 1,9A
- Momentum at max efficiency: 13.280mN-m
- Max power consumption: 4,48A
- Max. efficiency (without transmission): 62.9%
Characteristics for 12V voltage:
- Revolutions without load: 11.700 rpm
- Power consumption withut load: 0,4A
- Power consumption at max efficiency: 2,0A
- Max. efficiency (without transmision): 62.7%
Art.nr: GPX/S500BD12V, 11604
- Längd: 50mm
- Diameter: 35,8mm
- Vikt: 158g
- Axel diam.: 3,17mm
- Axel längd: 8,5mm
- Drivning: 4,5-12V
- Varvtal: 11700rpm
- Storlek/typ: 500
- Paket vikt: 0.24 kg
